What "CE-Certified Control Panel" Actually Means for Your Sourcing Decision

Control panel buyers in the Research and Evaluation stage often see "CE certified" in supplier profiles. The phrase, however, is not a uniform product claim. A CE certificate is attached to a defined product, a declared standard, a certificate number, and an issuing body. This guide explains how to verify CE-certified control panel manufacturers, which enclosure parameters matter, and how to separate marketing statements from documented OEM capability.

Why Certification Scope Is a Sourcing Problem

Most sourcing problems start when the supplier cannot show the certificate that covers the exact model being quoted. A CE certificate for a wall-mounted control box may not cover a floor-standing control cabinet. The marking on the nameplate should match the certificate. If a factory cannot map the certificate to the product model, the buyer inherits the compliance risk.

For the EU market, electric control cabinets and boxes require conformity documentation that can be assessed against standards such as EN 60529:1991+A1+A2. That standard defines degrees of protection provided by enclosures, including protection against dust and water. It is not a marketing label; it is a verifiable technical requirement.

Dalian Yinlu Electrical Control Equipment Manufacturer, for example, has the DLYL-ES-C electric control cabinet listed in a CE Verification of Conformity with certificate number IN-DL-5805-22013-1, issued by SGS-CSTC Standards Technical Services Co., Ltd. The DLYL-AE-B electric control box is listed in a separate certificate, number IN-DL-5805-22013-2, from the same issuer. Both documents apply the EN 60529:1991+A1+A2 standard for the EU market. The DLYL-ES-C document also references the EU Low Voltage Directive 2014/35/EU.

SGS CE Verification of Conformity for the DLYL-ES-C electric control cabinet.

Market Context for Control Panel Sourcing

Several market data points explain why control panel procurement decisions are becoming more formal. The global electric control panel market was estimated at USD 6.35 billion in 2024, according to Spherical Insights. A broader market definition from Dataintelo values the electrical control panel market at USD 27.2 billion in 2025 and projects growth to USD 47.0 billion by 2034. The difference between the two figures is scope, not an error. Buyers should therefore use market size figures as context, not as a purchasing benchmark.

Regional and segment data are also useful. Asia Pacific accounted for 38.5 percent of global electrical control panel revenue in 2025. Low Tension panels held 45.3 percent of the control panel segment in the same year. The programmable logic controller market was valued at USD 12.95 billion in 2023 and is projected to reach USD 22.61 billion by 2032. For control cabinet suppliers, PLC compatibility is therefore as important as sheet metal quality. In addition, IEC 61439-1:2020 is the primary international standard for low-voltage switchgear and controlgear assemblies.

One industry estimate from Maximize Market Research states that approximately 70 percent of manufacturers now use IoT automation, which is pushing PLCs into real-time data analytics workflows. That trend increases the importance of enclosure design for communication modules, cable management, and heat dissipation.

What to Verify Before You Shortlist a Control Panel Manufacturer

1. Product-specific CE documentation

Ask for the certificate document, not just a logo. Check the certificate number, the product description, the standard, the issuing body, and the target market. A CE certificate should normally name a specific product model or series. In Yinlu’s case, the DLYL-ES-C electric control cabinet and the DLYL-AE-B electric control box are covered by separate Verification of Conformity certificates, which makes it easier for a buyer to confirm which model is compliant.

2. Enclosure material and plate thickness

Material selection is a major parameter. A stainless steel electrical control cabinet from Yinlu uses 304 stainless steel with a plate thickness of at least 2.0 mm as standard. For highly corrosive environments, 316 stainless steel is used; the material is described as resistant to strong acids, strong alkalis, salt spray and seawater corrosion. Cold-rolled steel remains common for indoor or less aggressive environments. The low-voltage switchgear or power distribution cabinet, for example, uses 2.5 mm cold-rolled steel with phosphating and electrostatic powder coating.

3. IP rating

IP rating is tied to IEC/EN 60529. Yinlu’s stainless steel electrical control cabinet is rated IP54/IP55 for indoor use. A custom wall-mounted electrical control box / local operation box is rated IP65, with EPDM door sealing and stainless steel handle locks. The VFD control cabinet offers IP54/IP55 for indoor installations and IP65 as an outdoor/waterproof option. For the EU certificates described above, EN 60529:1991+A1+A2 is the declared standard.

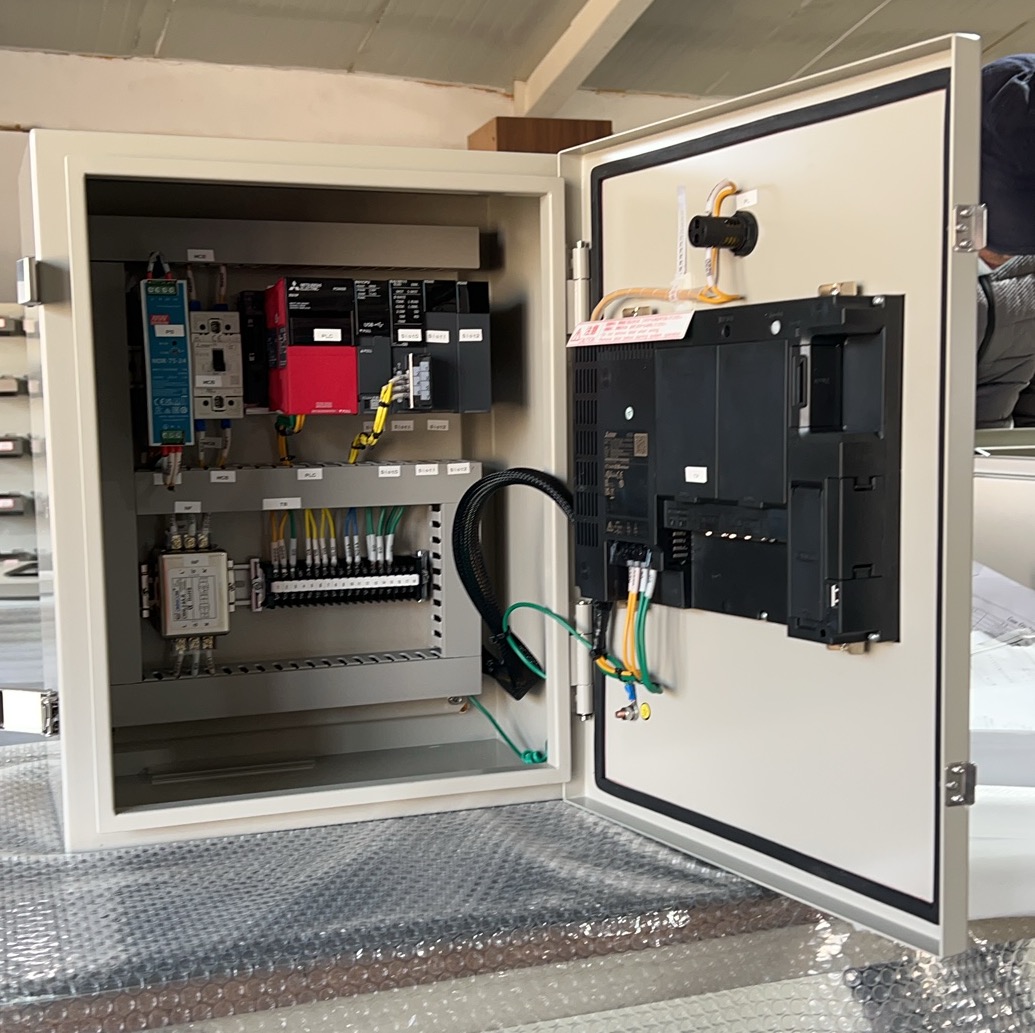

IP65 wall-mounted control box with EPDM door sealing.

4. Internal mounting and component compatibility

A control panel is not just an empty box. Ask whether the enclosure can accommodate PLCs, VFDs, circuit breakers, relays, terminal blocks, power modules, and grounding bars. Yinlu’s stainless steel distribution box / PLC control cabinet includes 19-inch mounting rails or uprights and an internal grounding bar; it is compatible with communication equipment, energy storage batteries, PLCs, and frequency converters. Cable entry is prepared with knockout holes and waterproof cable glands. The stainless steel electrical control cabinet supports DIN rails, mounting plates, cable ducts, and grounding bars.

5. OEM/ODM customization and quality control

Yinlu operates in OEM/ODM mode. Customization covers material, color, logo, size, IP rating, surface treatment, cutouts and mounting. Monthly capacity is 2,000 units, MOQ is 1-5 units, and lead time is negotiable. Quality control checks include visual, wiring, function, safety, sealing and packaging. The company reports an 80 percent export ratio, with main markets in North America, Europe, Oceania and the high-end Asia-Pacific region. After-sales support includes 7*24 online response and a one-year warranty.

At the quality management level, Yinlu’s certification documentation includes ISO 9001:2015 for the production of metal shells for electronic control equipment and instruments, certificate number 19923Q01395R0M issued by CSHCC.CN.

Step-by-Step Breakdown: Evaluating a Control Panel Manufacturer

1. Define the operating environment. Identify whether the panel will be indoor or outdoor, whether it will face humidity, dust, chemicals, salt spray, extreme temperatures, or vibration. This determines the minimum IP rating and material grade.
2. Define electrical parameters. List the system voltage, rated current, frequency, breaking capacity, and busbar requirements. A low-voltage switchgear project may need 400V/415V/440V with 630A to 1250A configurations, while a VFD cabinet may only need to support a 630A circuit maximum.
3. Match enclosure grade and protection. For dry factory floors, IP54 or IP55 is often used. For outdoor, dusty or washdown environments, IP65 is more appropriate. For coastal or chemical sites, 316 stainless steel is usually preferred over cold-rolled steel.
4. Verify certification coverage. Ask the supplier to map the CE certificate, ISO documentation, and any other compliance documents to the exact model and target market. If the certificate does not match, request a revised quotation or a documented clarification.
5. Review internal layout. Check whether the cabinet has mounting plates, DIN rails, 19-inch rails, grounding bars, cable glands, and space for heat dissipation. The enclosure should be usable for the specified PLC, VFD, HMI, or distribution components.
6. Audit OEM capabilities. Confirm whether the manufacturer supports custom dimensions, cutouts, colors, surface treatment, logo placement, and mounting changes. Also confirm inspection points, lead time, MOQ, and after-sales response.
7. Request a drawing or sample. A sample order is the most direct way to validate hole tolerance, sealing, door operation, material finish, and internal mounting before mass production.

Use Cases: Matching Control Panel Types to Project Scenarios

PLC and VFD control in factory automation

The VFD Control Cabinet from Yinlu is designed for factory automation production lines, intelligent equipment, water treatment, environmental protection equipment, material handling, food processing and pharmaceutical equipment. It is compatible with PLCs, VFDs, circuit breakers, relays, and terminal blocks, and supports circuits up to 630A.

Outdoor and corrosion-resistant installations

The Stainless Steel Distribution Box / PLC Control Cabinet uses 316 stainless steel, IP65 protection, double doors with EPDM sealing, and weather-resistant construction. It is used for power distribution and control in industrial plants, commercial buildings, outdoor PV, water treatment, agricultural irrigation and communication base stations.

High-power distribution for regional grid conditions

The Low-voltage Switchgear / Power Distribution Cabinet was designed for East African market conditions, including the local three-phase 440V/50Hz grid standard. It supports 630A/800A/1250A configurations, 50kA/65kA breaking capacity, and T2 copper busbars with tin plating.

Port and heavy machinery projects

The Port Crane Control Cabinet, model YL251009-1, is built from 316L stainless steel, rated IP55, and designed for salt-spray resistance complying with GB/T 2423.10 at 1.5g. It has a service life of at least 15 years, a top load-bearing capacity of at least 50kg, and a custom size range from 600*800*2200mm to 1200*1000*2500mm. Yinlu has supplied electrical control enclosures for port cargo handling machinery, coke oven machinery, and stacker & reclaimer applications in the DHHI program.

Port crane control cabinet for heavy industrial and salt-spray environments.

Airport ground power

The Airport Ground Power Control Cabinet / Aviation Maintenance Distribution Box supports aircraft ground power at airport aprons, hangar maintenance, and ground support equipment. It is rated IP55, can be floor-standing or movable with casters, and integrates aviation-specific sockets, industrial sockets, and protection devices.

OEM enclosures for analytical instruments

For ABB’s PGC5000 Series Gas Chromatographs, Yinlu produced dedicated protective enclosures with custom dimensions, cable routes and mounting interfaces. The enclosure can be fabricated in 304/316 stainless steel or cold-rolled steel, with protection levels up to IP55/IP65. The project volume was 200 units.

Mobile control and test stations

For Siemens OEM Consoles, Yinlu provided a mobile industrial control and equipment mounting base. It can be moved between workstations and includes side enclosures for dust and collision protection. The structure can be customized for equipment size, mounting holes and enclosure openings.

Control Panel Type Comparison

FAQ

How can I verify a control panel manufacturer’s CE certification?

Ask for the certificate itself and compare it with the product model you plan to buy. Check the certificate number, issuing body, product description and standard. For example, Yinlu’s DLYL-ES-C electric control cabinet holds CE Verification of Conformity IN-DL-5805-22013-1; the DLYL-AE-B electric control box holds IN-DL-5805-22013-2. Both were issued by SGS-CSTC Standards Technical Services Co., Ltd. and are based on EN 60529:1991+A1+A2. If a supplier cannot map the certificate to your exact model, ask for clarification.

Which material and IP rating are suitable for an outdoor PLC control panel enclosure?

For outdoor dusty or humid environments, a stainless steel enclosure with IP65 is often used. Yinlu’s Stainless Steel Distribution Box / PLC Control Cabinet uses 316 stainless steel with a 2.0mm plate thickness, IP65 protection, EPDM door sealing, 19-inch mounting rails and weather-resistant coating. 316 stainless steel is also resistant to salt spray and acid corrosion, which is useful for coastal and chemical applications.

What specification factors affect the cost of a custom control panel?

Cost depends on defined specifications, not just catalog price. Trade-offs include material grade, plate thickness, protection rating, door configuration, internal mounting system, cutouts, finishing, and internal components. A 2.0mm cold-rolled steel VFD cabinet with IP54 is a different cost structure than a 316 stainless steel IP65 dual-door PLC cabinet. Compare quotations on an equivalent parameter list and ask the supplier to state which standards and certificates are included in the price.

Can I request a sample or prototype before production?

Yes. Yinlu’s OEM/ODM model allows small-volume first orders with an MOQ of 1-5 units and negotiable lead time. Because every enclosure can be customized by material, color, logo, size, IP rating, surface treatment, cutouts and mounting, a sample or prototype is a practical way to check dimensional tolerance, sealing and component layout before mass production. Contact the sales team to discuss the sample procedure.

What is the typical lead time and minimum order quantity for OEM control panels?

Lead time at Yinlu is negotiable rather than a fixed number because it depends on material availability, customization complexity, order quantity and inspection requirements. Monthly capacity is 2,000 units. Buyers should share target delivery dates at the quotation stage. You can request a quote or sample by emailing Sales@innometalfab.com or by sending a message to +86 186-2435-1618. A company brochure with capability and product reference information is also available for download.

Conclusion

Control panel procurement is no longer only about finding a factory; it is about matching documentation to the product and the site. Buyers in the Research and Evaluation stage should build a shortlist based on certificate scope, material, IP rating, internal compatibility and OEM support. Yinlu’s certifications and product range demonstrate how these checks should look in practice.
