Stainless Steel – IP65 Rated for Extreme Corrosion Resistance
Product Summary

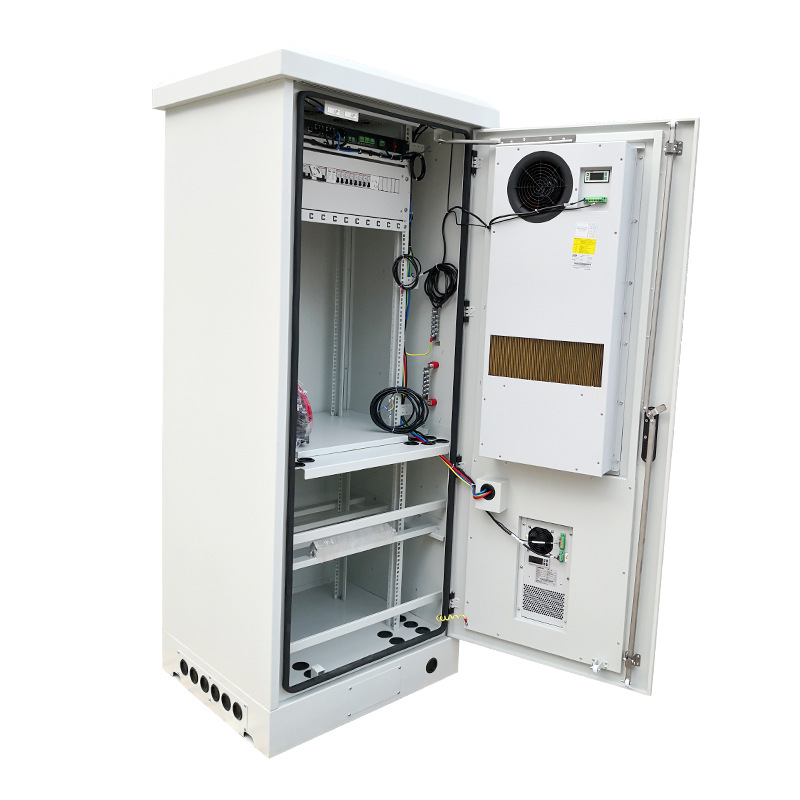

This outdoor telecommunication cabinet is manufactured from high-grade 304 or 316 stainless steel, offering superior resistance to salt spray, acid, and alkali corrosion. With an IP65 protection rating, it provides complete protection against dust ingress and low-pressure water jets from any direction. Designed for extreme outdoor environments including coastal areas, chemical plants, and industrial sites, it ensures reliable operation of internal electrical components in temperatures ranging from -40°C to +55°C. The cabinet integrates a powerful cooling system with 1500W air conditioner and DC48V fans to maintain optimal performance even in high ambient temperatures.
Key Features
Premium Stainless Steel Construction: Available in 304 or 316 stainless steel, providing exceptional corrosion resistance and durability ideal for harsh chemical and marine environments.
Enhanced Protection Rating: IP65 rating ensures protection against dust, water jets, and heavy rain, making it suitable for outdoor installations where moisture exposure is high.
Robust Cooling System: 1500W AC220V air conditioner plus DC48V fans efficiently regulate internal temperature, preventing heat-related failures.
Wide Temperature Tolerance: Operates from -40°C to +55°C and can be stored from -50°C to +70°C, ensuring functionality in extreme climates.
OEM/ODM Customization: Full customization including size, color, logo, accessories, and protection rating to meet project-specific needs.
Technical Specifications
Parameter
Value
Type
Network Cabinet
Material
Stainless Steel (304/316)
Protection Rating
IP65
Certificate
CE, ISO9001/ISO14001
Air pressure
62kpa~101kpa
Storage temperature
-50℃~+70℃
Working temperature
-40℃~+55℃
Noise Level
60-65dB
Cooling
1500W, AC220V Air conditioner + DC48V fans
Models and Options
Available in various sizes and mounting configurations (wall, floor, pole). Can be equipped with additional environmental control options such as dehumidifiers or heaters.
Materials and Structure
Constructed from 304 or 316 stainless steel, the cabinet offers excellent structural strength and corrosion resistance. Internal layout includes separated zones for strong and weak currents with cable management systems.
Applications
Specifically designed for coastal telecommunication infrastructure, chemical processing plants, offshore platforms, and wastewater treatment facilities where corrosion resistance is paramount.
Customization
We provide extensive customization options including material grade selection (304/316), cabinet dimensions, internal mounting plates, cable entry points, and thermal management solutions.
FAQ
Q1: What is the minimum order quantity?
The MOQ is 1 unit, allowing you to test for your specific application.
Q2: Does the cabinet come with factory certification?
Yes, the product is CE certified and complies with ISO9001:2015 quality management standards.
Q3: Can I choose between 304 and 316 stainless steel?
Absolutely, based on your corrosion requirements, we can use either grade. 316 offers enhanced resistance to chloride environments.
Q4: Is the cabinet suitable for high-humidity areas?
Yes, the IP65 rating and optional dehumidifier make it ideal for high humidity and condensation-prone locations.
Q5: What is the typical lead time?
Please contact us for current lead times as they vary with order size and customization complexity.
