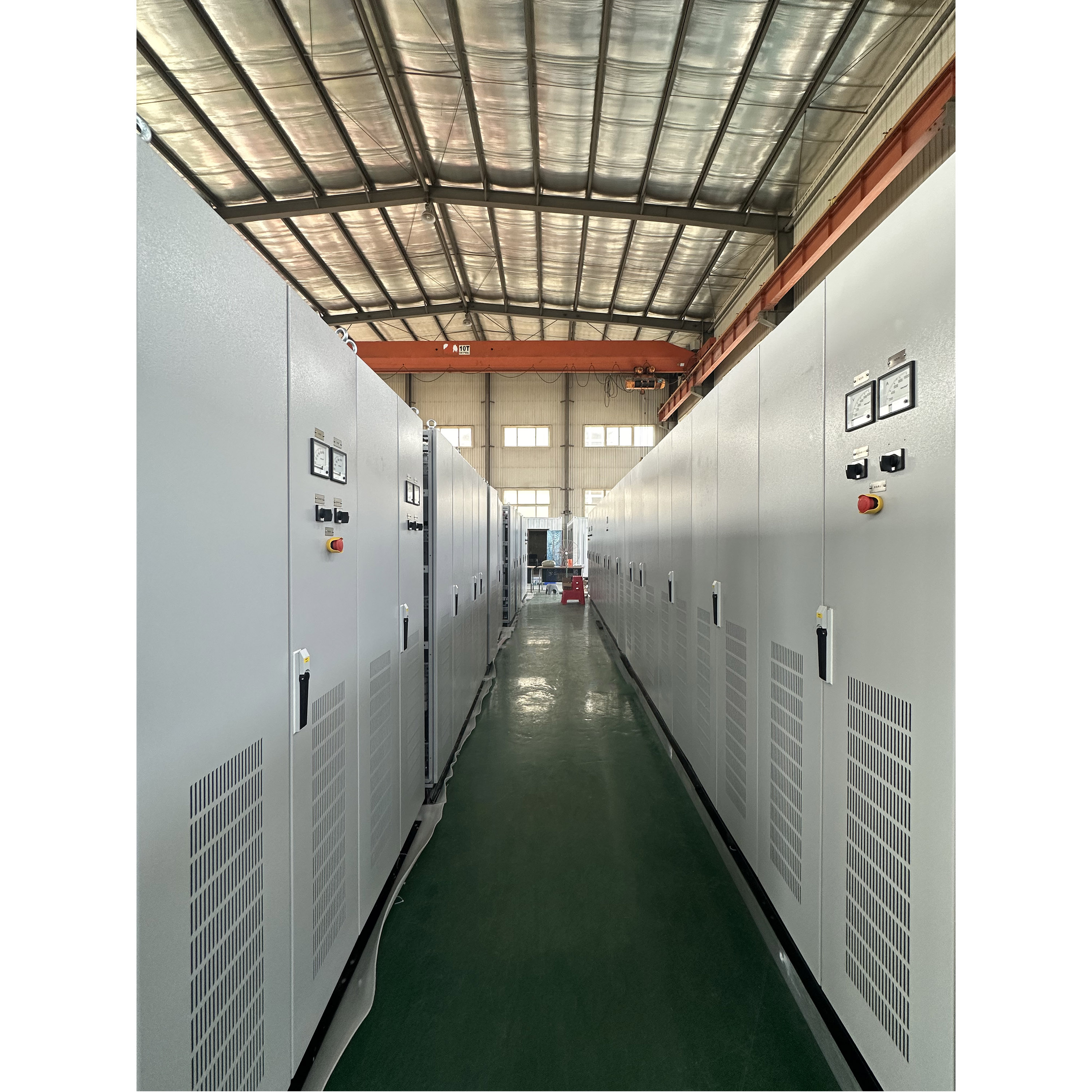

Product Summary
Our port crane control cabinet, model YL251009-1, is designed for demanding marine environments. With IP55 protection (double-seal + silicone rubber seal strip), salt spray resistance up to 1.5g, and a service life of over 15 years, it ensures reliable power distribution and control for port cranes.
Key Features
- IP55 Protection: Double-seal with silicone rubber seal strip ensures dust-tight and water-resistant performance.
- Salt Spray Resistance: Withstands 1.5g salt spray, meeting GB/T 2423.10 standards, ideal for coastal applications.
- Durable 316L Stainless Steel: Superior corrosion resistance extends cabinet life.
- High Load-Bearing: Top load-bearing capacity ≥50kg, suitable for heavy auxiliary equipment.
- Accurate Fabrication: Hole tolerance ≤ ±0.5mm ensures precise component fit.
- High Insulation Resistance: Phase-to-phase insulation resistance ≥100MΩ for electrical safety.
Technical Specifications
| Protection Level | IP55 (double-seal + silicone rubber seal strip) |
| Salt Spray Resistance | 1.5g (complies with GB/T 2423.10) |
| Service Life | ≥15 years |
| Hole Tolerance | ≤±0.5mm |
| Top Load-Bearing | ≥50kg |
| Temperature Adaptation | Internal temp ≤52℃ (ambient 45℃) |
| Compatible Circuit Breaker Current | Max 6300A |
| Insulation Protection Level | Phase-to-phase insulation resistance ≥100MΩ |
Models and Options
Standard model YL251009-1. Custom sizes available from 600*800*2200mm to 1200*1000*2500mm to meet specific project needs.
Materials and Structure
Constructed from 316L stainless steel, offering exceptional corrosion resistance. The cabinet features a sealed structure with silicone rubber seals for IP55 protection.
Applications
Primarily used in port crane control systems, power distribution, and marine equipment. Suitable for salt-laden environments like coastal ports and offshore installations.
Customization
We offer OEM/ODM services. Custom sizes, material finishes, and internal layouts are available. Contact us for detailed requirements.
FAQ
What is the protection level of this cabinet?
IP55, with double-seal and silicone rubber seal strip, provides dust-tight and water-resistant protection.
Can it withstand marine salt spray?
Yes, tested to 1.5g salt spray per GB/T 2423.10, ensuring durability in coastal conditions.
What is the maximum circuit breaker current it can accommodate?
Up to 6300A, suitable for heavy-duty power distribution.
What materials are used?
316L stainless steel for great corrosion resistance.
Can the size be customized?
Yes, custom sizes from 600*800*2200mm to 1200*1000*2500mm are available.
What is the service life?
Over 15 years under normal operating conditions.
Inquiry Information
MOQ: 1 unit | Delivery: FOB/CIF/EXW/DAP/CFR/DDP | Payment: TT/PayPal/LC/Visa | Acceptance: Power on test
Contact: Name: Eric | Email: Sales@innometalfab.com | Tel/WhatsApp: +86 186-2435-1618
