IP55 Airport Ground Power Control Cabinet with Aviation Sockets
Product Summary: This IP55 rated airport ground power control cabinet is specifically designed for aircraft ground power distribution at aprons and hangars. Built with 3.0mm cold-rolled steel and electrostatic powder coating, it offers reliable power distribution from 16A to 125A, supporting both AC and DC aircraft power needs.
Key Features
- IP55 Protection: Compliant with EN 60529, protecting against dust and water jets, suitable for outdoor apron environments.
- Versatile Configuration: Integrates aviation sockets (28V DC, 115V 400Hz) and industrial sockets (IEC 60309), meeting diverse ground support equipment needs.
- Robust Construction: 3.0mm cold-rolled steel with phosphating derusting and electrostatic powder coating, resistant to corrosion and vibration.
- Customizable Layout: Floor-standing or movable with casters, customizable size and compartment layout to fit specific airport power requirements.
- Safety & Reliability: Equipped with grounding bar, equipotential terminals, and insulation monitors, ensuring safe operation in demanding conditions.
Technical Specifications
| Parameter | Value |
|---|
| Protection Level | IP55 |
| Material Thickness | 3.0mm |
| Surface Treatment | Phosphating derusting + electrostatic powder coating |
| Rated Voltage | AC 220V/380V/400V (3-phase 5-wire), DC 28V |
| Rated Frequency | 50Hz/60Hz |
| Rated Current | 16A / 32A / 63A / 125A |
| Ambient Temperature | -20°C to +60°C |
| Relative Humidity | ≤95% |
| Installation | Floor-standing, movable with casters |
| Compliance | EN 60529:1991+A1+A2 |
Models and Options
Customizable size and compartment layout. Optional accessories include aviation sockets, E-stop buttons, indicators, insulation monitors, 400Hz modules, casters, and push handles.
Materials and Structure
Fabricated from 3.0mm cold-rolled steel, with internal compartment design for power, control, and maintenance. Includes DIN rails, copper busbars, terminal blocks, and grounding bar.
Applications
Designed for aircraft ground power at airport aprons, hangar maintenance, ground support equipment power distribution, and aviation maintenance station power supply.
Customization
OEM and ODM orders welcome. Customize dimensions, compartment layout, socket configuration, and optional features for specific airport requirements.
FAQ
Q: What is the protection level of this cabinet? A: It is IP55, compliant with EN 60529:1991+A1+A2, protecting against dust and water jets.
Q: What voltage options are available? A: It supports AC 220V/380V/400V (3-phase 5-wire) and DC 28V for aircraft-specific power.
Q: Can the cabinet be customized for size? A: Yes, size and compartment layout are customizable based on your airport's power needs.
Q: What is the MOQ? A: The MOQ is 1 unit.
Q: What payment methods are accepted? A: TT, PayPal, LC, and Visa are accepted.
Q: What certifications does the cabinet have? A: It complies with EN 60529:1991+A1+A2 and the company holds ISO 9001:2015 certification.
Inquiry Information
For more details or to request a quote, please contact: Eric at Sales@innometalfab.com or +86 186-2435-1618. WhatsApp: +86 186-2435-1618.

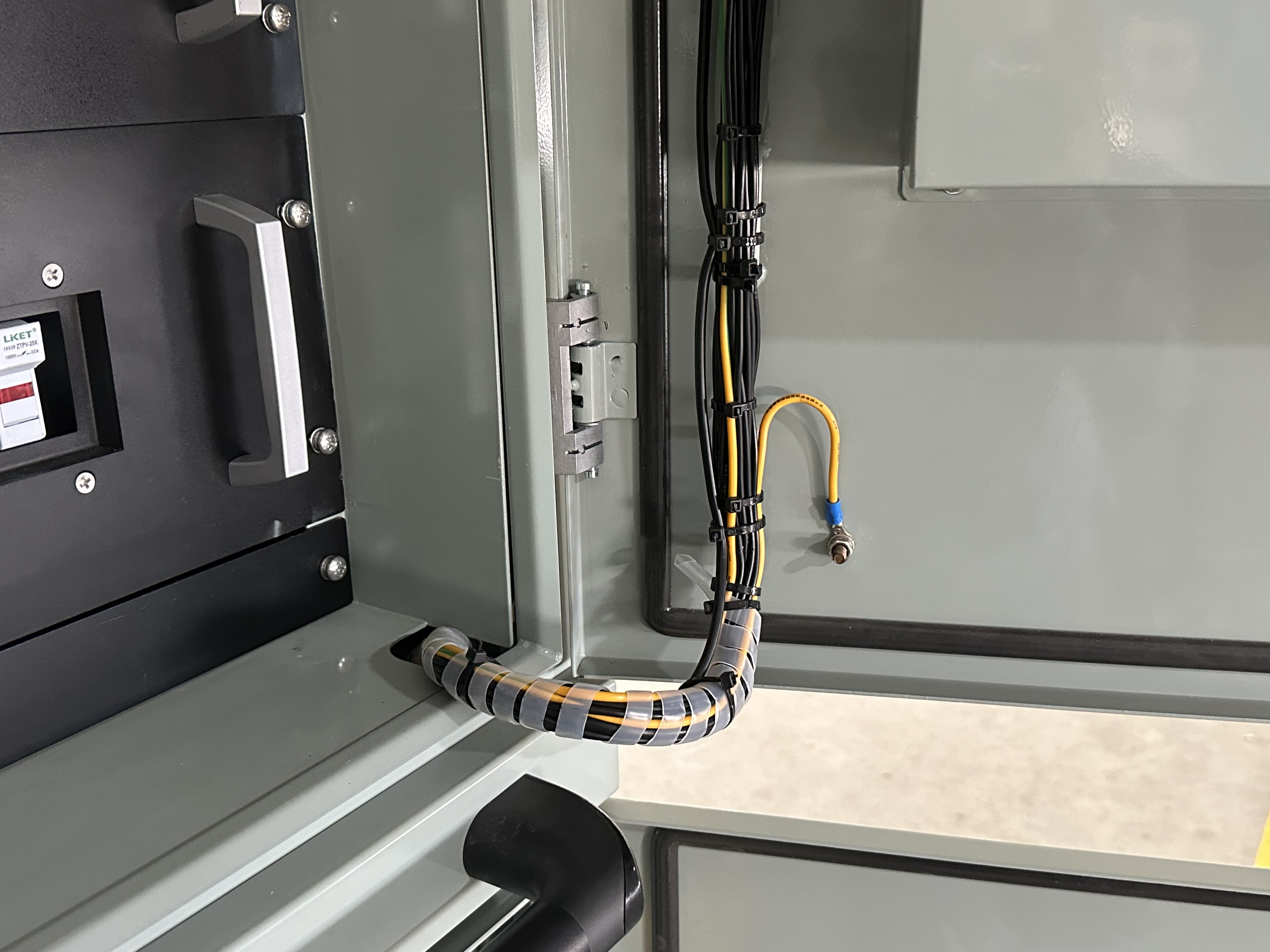

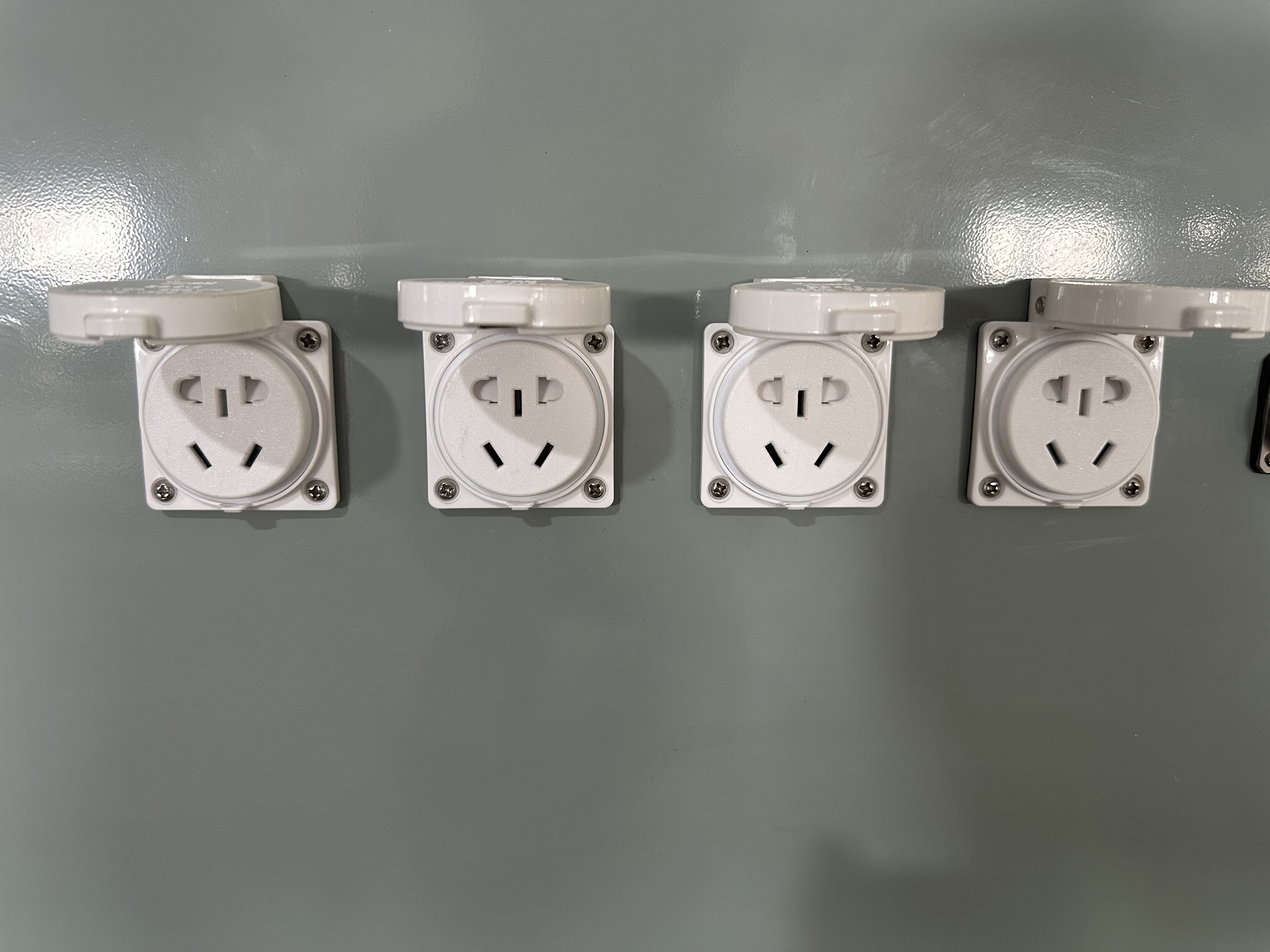

Product Images
