IP54 Customizable Steel Dispatch Console with Sloped Workstation

Quantity:
SKU: 1451812345
Model: customizable

{{ variable.name }}

{{ value.name }}
Product Details

IP54 Customizable Steel Dispatch Console with Sloped Workstation

Product Summary

This modern dispatch console is engineered for control rooms and equipment monitoring environments. It features a sloped upper operation area for comfortable viewing of displays and instruments, and a lower double-door compartment for secure equipment housing. Constructed from cold-rolled steel with a two-tone powder coating (black frame, white panels), it achieves IP54 protection against dust and splashing. The console is fully customizable in size and structure to fit specific display quantities, instrument layouts, and operational needs. With built-in cable management and optional accessories, it provides a complete solution for mission-critical operations.

Key Features

IP54 Protection - Dustproof and splash-proof design suitable for control room environments.
Customizable Size & Structure - Tailor dimensions and layout to your exact requirements.
Sloped Ergonomic Work Area - Upper section angled for optimal screen viewing and instrument access.
Double-Door Equipment Compartment - Secure housing with heat dissipation louvers and removable back panel.
Integrated Cable Management - Separate strong/weak current ducts for organized wiring.
V-0 Flame Retardant Materials - Countertop and cabinet meet V-0 standard for fire safety.

Technical Specifications

ParameterValue
Thickness2.0 mm
ColorCustomizable (two-tone: black frame, white panels)
Surface TreatmentBlack powder coating for frame, white powder coating
Protection LevelIP54
InstallationFloor-standing with adjustable feet/casters (optional)
StructureUpper sloped operation area; lower double-door equipment compartment
Door/DrawerDouble doors with locks; lower doors with heat dissipation louvers
Cable ManagementBuilt-in separate cable ducts, cable holes at bottom/back/top
SizeCustomizable
Ambient Temperature0°C ~ +45°C
Relative Humidity≤85% (no condensation)
Altitude≤2000m
Vibration ResistanceCompliant with GB/T 13384
Flame RetardancyV-0 standard for countertop and cabinet materials
GroundingGrounding resistance ≤4Ω

Models and Options

This console offers a wide range of customization options:

  • Optional Accessories: Drawers, doors, keyboard tray, mouse tray, display bracket, cable ducts, lighting, locks
  • Internal Component Integration: Industrial displays, PLC, touch screens, meters, buttons, indicators, switches, power modules
  • Multiple Units: Can be spliced for multi-station operation scenarios

Materials and Structure

Constructed from high-quality cold-rolled steel, this console offers robust stability and durability. The two-tone powder coating not only enhances aesthetics but also provides corrosion resistance. The structure consists of a sloped upper section for ergonomic operation and a lower double-door equipment compartment with removable back panel for easy maintenance. The built-in cable ducts ensure neat and safe cable routing.

Applications

This dispatch console is ideal for:

  • Smart city control centers
  • Traffic command rooms
  • Power dispatch centers
  • Security monitoring stations
  • Emergency command centers
  • Smart factory control rooms

Customization

We offer complete customization to meet your specific requirements:

  • Custom size and structure based on display quantity, instrument layout, and operational needs
  • Custom cutouts on sloped panel for instruments, buttons, displays, etc.
  • Color options per project visual specifications
  • Optional casters for mobility
  • Multi-unit splicing for multi-station operations

Frequently Asked Questions

What is the minimum order quantity (MOQ)?

The MOQ is 1 unit, allowing you to test the product before bulk orders.

What are the available delivery terms?

We support FOB, CIF, EXW, DAP, CFR, and DDP delivery methods.

What payment methods do you accept?

We accept TT, PayPal, LC, and Visa payments.

How is the product accepted after production?

We perform a power-on test before shipment to ensure functionality.

Can I customize the size and structure of the console?

Yes, the console is fully customizable in size and structure to fit your specific display quantity, instrument layout, and operational needs.

What is the production lead time?

Lead time may vary based on customization requirements; please contact us for specific timelines.

Does the console comply with safety standards?

Yes, the materials meet V-0 flame retardant standard and the console has reliable grounding (≤4Ω).

Inquiry Information

For more details or to request a quote, please contact us:

Tel/WhatsApp: +86 186-2435-1618

Email: Sales@innometalfab.com

Website: www.innometalfab.com

Product Gallery

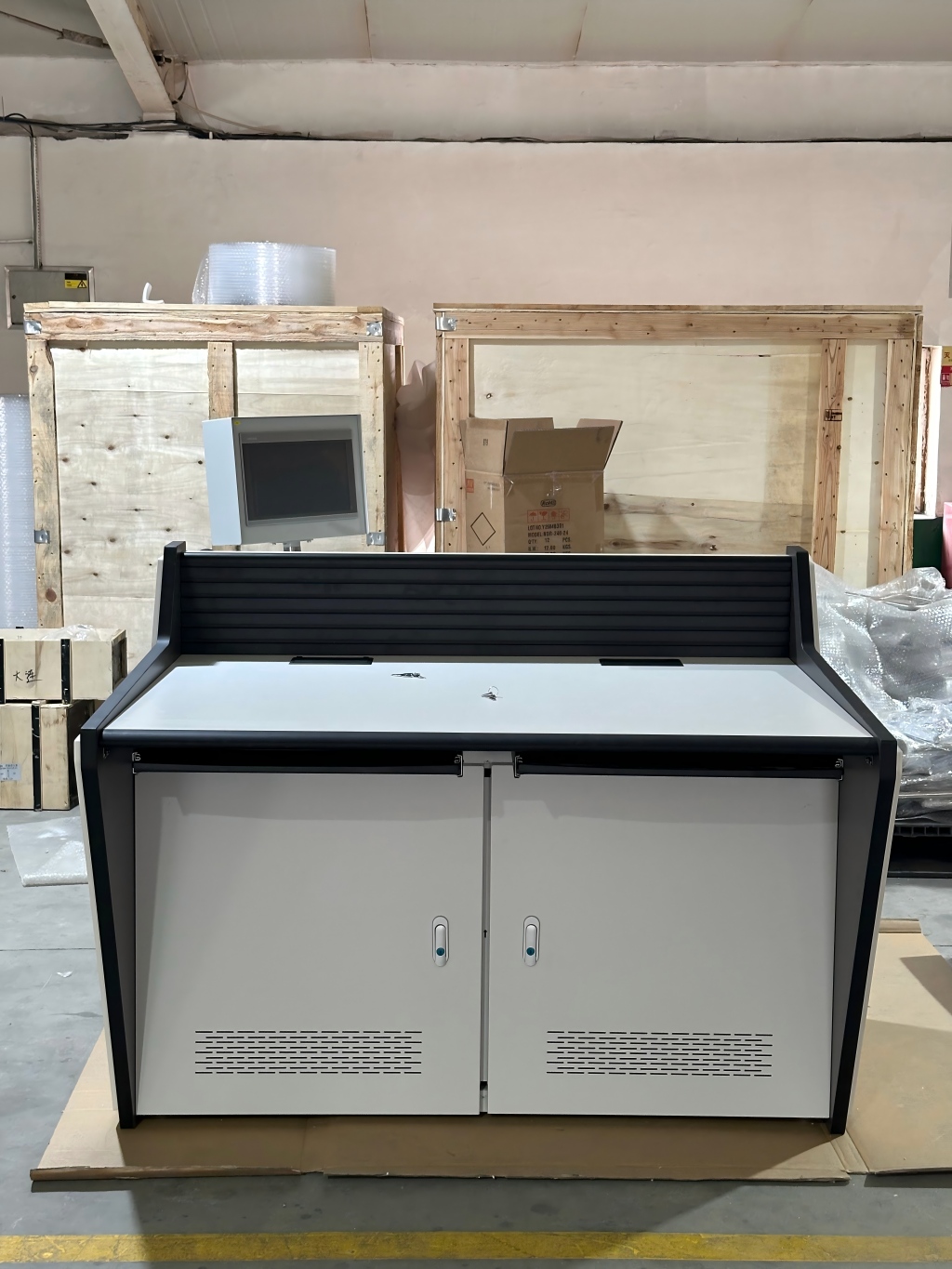

Modern dispatch console front view with sloped worktop and double doors Detail of dispatch console lower door with heat dissipation louvers
