Floor-Standing IP54 Industrial Monitoring Console
This floor-standing industrial monitoring console is engineered for control rooms and equipment rooms requiring dustproof and splash-proof protection. Its modular design allows customization of the upper sloped panel to accommodate displays, meters, indicators, and controls, while the lower section provides secure storage and cable management. Built with 2.0mm cold-rolled steel and a durable electrostatic powder coating, this console ensures long-lasting performance in demanding industrial environments.
Key Features
- IP54 Protection: Dustproof and splash-proof design suitable for control rooms and equipment rooms.
- Modular Structure: Upper section for monitoring, lower section for storage with doors/drawers; expandable with multiple consoles.
- Customizable Panel: Upper sloped panel can be tailored for displays, meters, buttons, indicators, and touch screens.
- Efficient Cable Management: Built-in strong/weak current cable ducts and bottom/back cable holes for organized routing.
- Durable Construction: 2.0mm cold-rolled steel with phosphating derusting and electrostatic powder coating (RAL7035 or custom).
- Safety Compliance: Materials meet V-0 flame retardant standard; grounding resistance ≤4Ω.
Technical Specifications
| Parameter | Value |
|---|
| Material | Cold-rolled steel (2.0mm) |
| Surface Treatment | Phosphating derusting + electrostatic powder coating (RAL7035 or custom) |
| Protection Level | IP54 |
| Installation | Floor-standing with adjustable feet or casters (optional) |
| Ambient Temperature | 0℃ to +45℃ |
| Relative Humidity | ≤85% (no condensation) |
| Altitude | ≤2000m |
| Vibration Resistance | Compliant with GB/T 13384 |
| Flame Retardancy | V-0 standard |
| Grounding Resistance | ≤4Ω |
Models and Options
This console offers a wide range of customization options including:
- Size and structure tailored to display quantity and instrument layout
- Optional accessories: drawers, doors, keyboard tray, mouse tray, display bracket, cable ducts, lighting, locks
- Multiple consoles can be spliced for multi-station operation
Materials and Structure

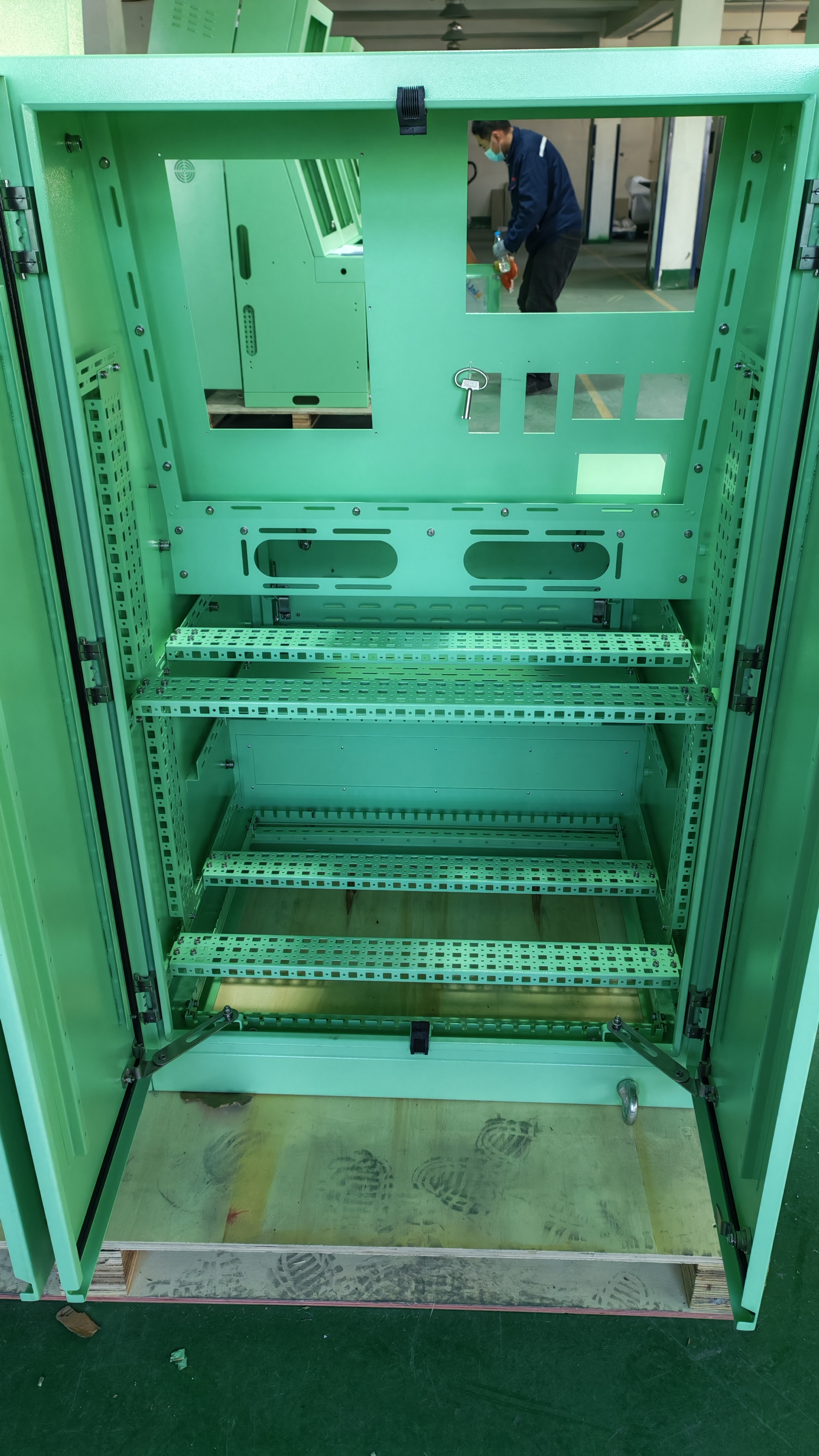

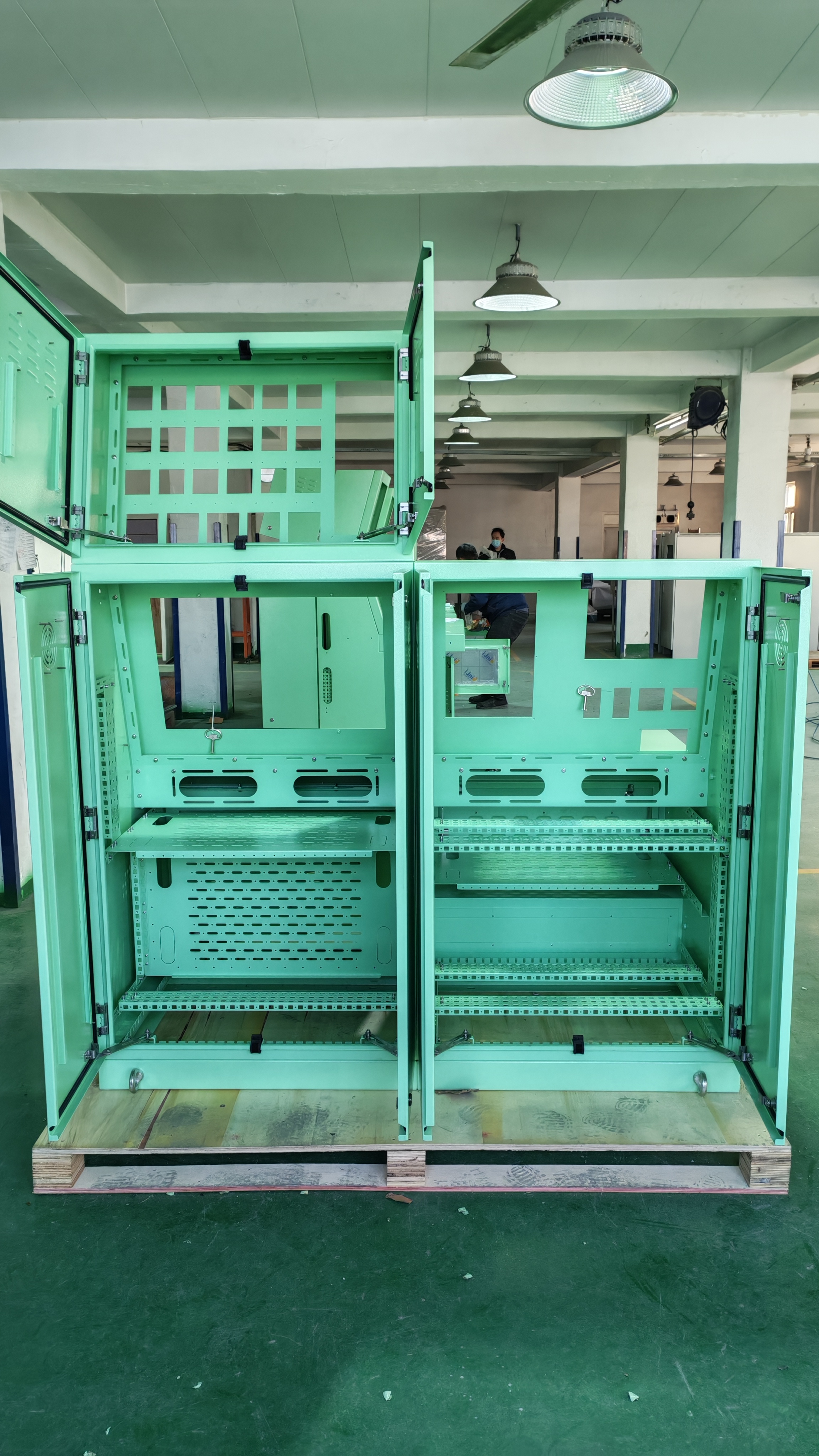

Constructed from 2.0mm cold-rolled steel, the console features a modular design with an upper section for monitoring equipment and a lower section equipped with doors or drawers for storage and equipment compartment. The structure is expandable and designed for easy cable management.
Applications
Ideal for industrial automation, power dispatch, water monitoring, rail transit, security monitoring, and smart factories. The console supports 24/7 operation in indoor control room environments.
Customization
Custom cutouts on the sloped panel can be made for instrument windows, button holes, indicator holes, display mounting holes, and test interfaces. Color can be customized to meet project specifications, and optional fans can be added for heat dissipation.
FAQ
What is the minimum order quantity?
MOQ is 1 unit.
What delivery methods are available?
We support FOB, CIF, EXW, DAP, CFR, and DDP.
What payment methods do you accept?
We accept TT, PayPal, LC, and Visa.
Can you customize the panel layout?
Yes, we can cut holes for displays, meters, buttons, indicators, and other components according to your specifications.
Is the console suitable for 24/7 operation?
Yes, the console is designed as a passive load-bearing structure and can operate continuously depending on internal equipment.
What safety standards does it meet?
It meets V-0 flame retardant standard and grounding resistance ≤4Ω, with reliable cabinet grounding.
Inquiry Information
Contact us at Sales@innometalfab.com or +86 186-2435-1618 for more details and a quote.
