304 Stainless Steel Coastal Airport Power Distribution Cabinet
Product Summary: This airport power distribution cabinet is constructed with 304 stainless steel, specifically designed for coastal airports where salt spray and corrosive environments are a concern. It offers robust power distribution with IP55 protection and is resistant to aviation fuel, hydraulic oil, and salt spray.
Key Features
- Corrosion Resistant: 304 stainless steel construction provides excellent resistance to salt spray, aviation fuel, and hydraulic oil, ideal for coastal airports.
- IP55 Protection: Compliant with EN 60529, ensuring protection against dust and water jets.
- Versatile Power Options: Supports AC 220V/380V/400V and DC 28V, with current ratings from 16A to 125A.
- Customizable Configuration: Floor-standing or movable with casters, customizable size and compartment layout.
- Thermal Adaptability: Operates in -20°C to +60°C, with optional heater for northern airports.
Technical Specifications
| Parameter | Value |
|---|
| Material | 304 Stainless Steel |
| Protection Level | IP55 |
| Thickness | 3.0mm (for cold-rolled steel version, stainless steel thickness may vary) |
| Rated Voltage | AC 220V/380V/400V (3-phase 5-wire), DC 28V |
| Rated Frequency | 50Hz/60Hz |
| Rated Current | 16A / 32A / 63A / 125A |
| Ambient Temperature | -20°C to +60°C |
| Corrosion Resistance | Resistant to aviation fuel, hydraulic oil, salt spray |
Models and Options
Customizable size and compartment layout. Optional accessories include aviation sockets, E-stop buttons, indicators, insulation monitors, 400Hz modules, casters, and push handles.
Materials and Structure
Constructed with 304 stainless steel for maximum corrosion resistance. Internal compartment design for power, control, and maintenance, with DIN rails, copper busbars, terminal blocks, and grounding bar.
Applications
Specifically recommended for coastal airports and any aviation facility where salt spray and corrosive environments are present. Suitable for aircraft ground power at aprons, hangar maintenance, and ground support equipment power distribution.
Customization
OEM and ODM orders welcome. Customize dimensions, compartment layout, socket configuration, and optional features to meet specific corrosive environment requirements.
FAQ
Q: Why choose 304 stainless steel for this cabinet? A: 304 stainless steel offers exceptional resistance to salt spray and corrosive elements, making it ideal for coastal environments.
Q: Is the cabinet suitable for outdoor use? A: Yes, it has an IP55 protection rating, providing protection against dust and water jets.
Q: Can the power ratings be customized? A: Yes, current ratings from 16A to 125A are available, and the configuration can be customized based on your needs.
Q: What is the delivery method? A: We support FOB, CIF, EXW, DAP, CFR, and DDP delivery methods.
Q: Does the cabinet come with a heater option? A: Yes, an optional heater is available for northern airports with low temperatures.
Inquiry Information
Contact Eric at Sales@innometalfab.com or +86 186-2435-1618 for more information. WhatsApp: +86 186-2435-1618.

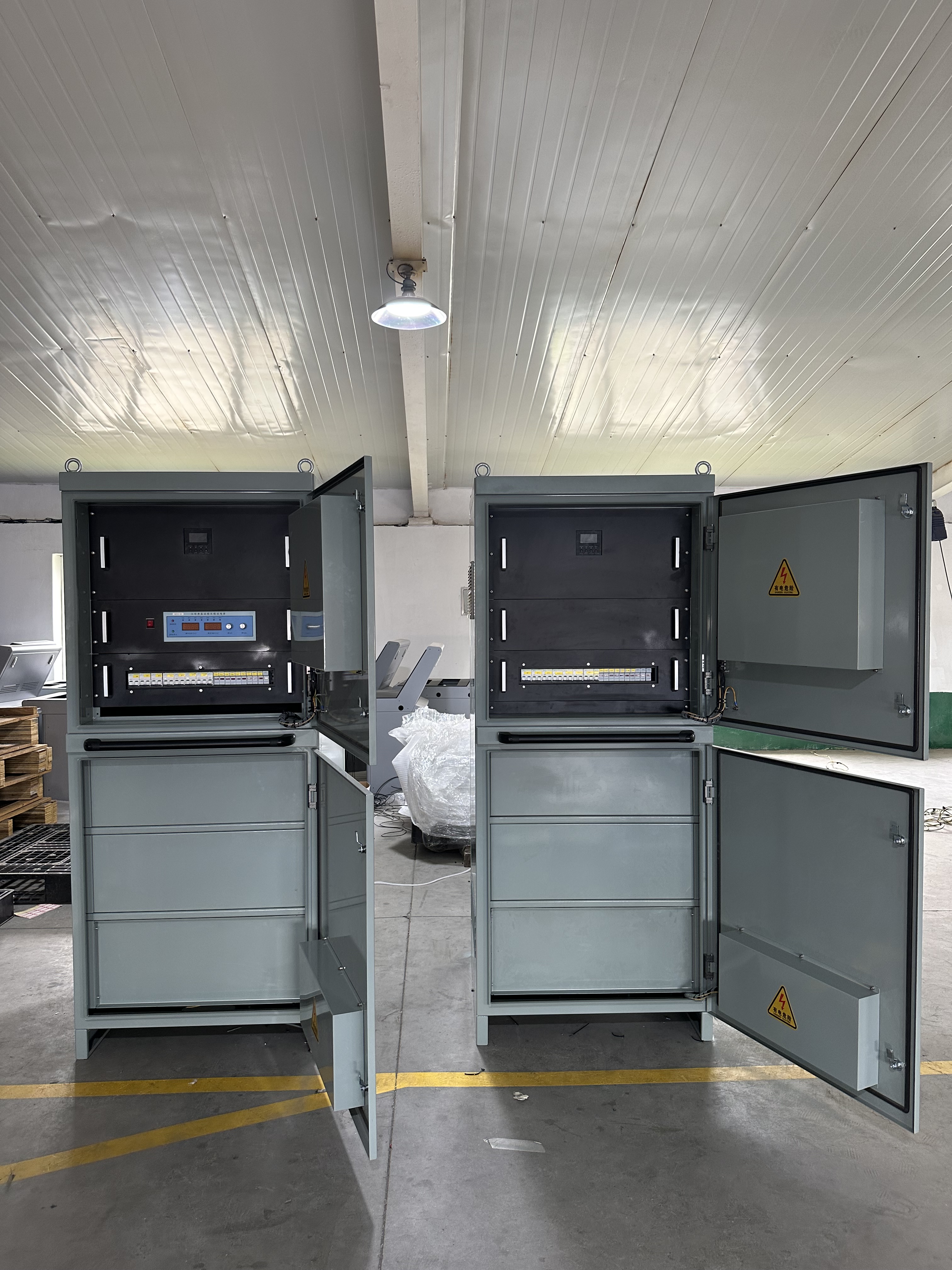

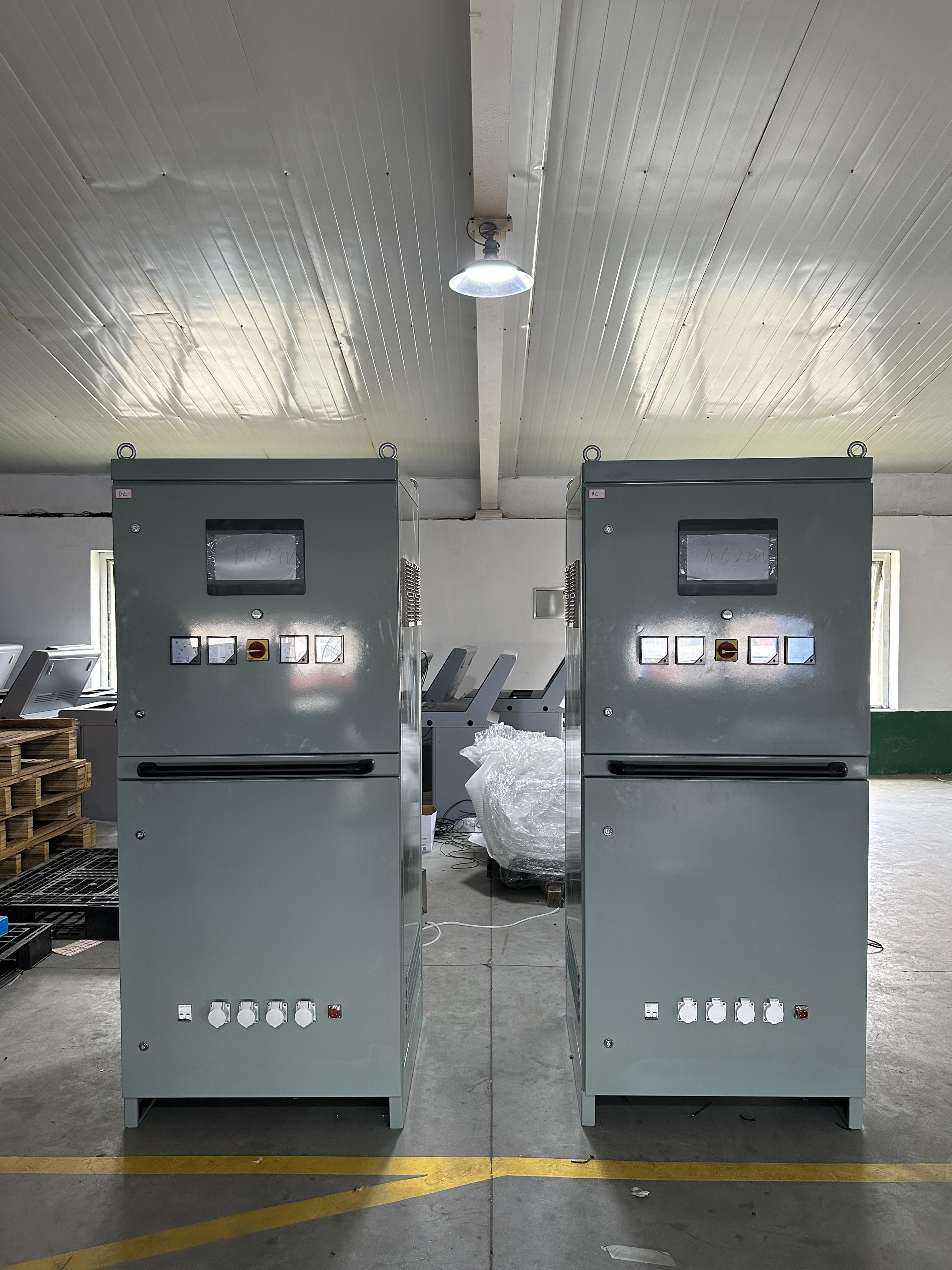

Product Images
